Item No:CB-125D Brass bender

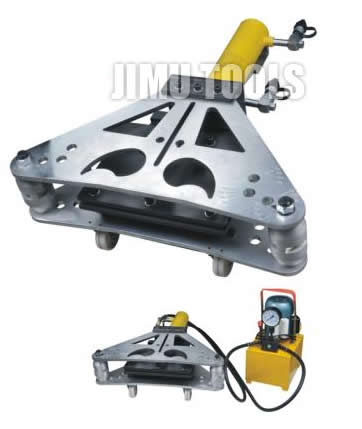

CB-125AD vertical curved row machine is a kind of Li-bending copper and aluminum bus dedicated equipment, it can be copper, aluminum bus bar from the horizontal plane bending 0 ° ~ 90 °, the time just a few minutes, the machine is equipped with dial, easy to control the bending angle, using hinged flower plate, opening and closing facilities, easy to operate, and a wide range of template, using quick-change-style top-module structure, convenient and bend radius in line with national standards for power companies: R = row width × coefficient (2-2.5).
A structure

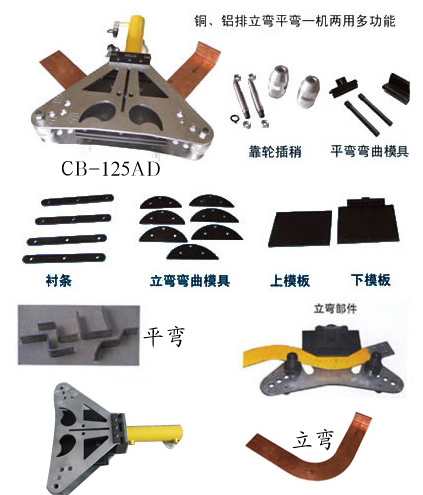

By the hand pump (electric pump) (16), and rapid connector (2), working cylinder (1), side of block (3), spent on board (4), under the flower plate (5), roll column (6) , R template (7), clamp die (8), right-angle die (9), United pole plate (10), pin (11), car (12), high-pressure pipeline (13) etc..
Annex Draft:

2, uses
Curved row of machine is mainly used in the Power Supply Bureau, substations and the general electric power lines installed in accordance
Power lines aluminum row or rows of bending copper and repair.
Third, performance characteristics: (Technical Data)
1. Maximum working pressure: 630Mpa 2. Maximum stroke: 200mm.
3. Curved row range: copper and aluminum row width 40.50.60.80.100.120mm. Thickness: 4mm-12mm between.
4 bend angle: D> 90-degree angle 5 arbitrary. Bend radius: R = row width X2.5
6. 16 # hydraulic oil oil varieties 7. Oil: 600 ml
8. Total weight: 82 kg 9. Bending parameters such as table:
