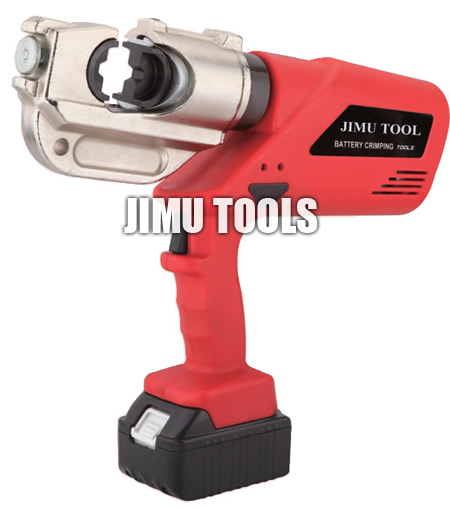

型号Type EZ-400
出力Crimping Force 120KN
行程Stroke 42mm
压接次数Crimps per charge 120crimps (Cu cable 150mm2)
压接一次时间Crimping cycle 6s up to 18s (depend on the size)
重量Weight 5.8kgs (不带电池)
电压Battery voltage 18V
电池电容Battery capacity 3.0Ah
充电时间Charging time 2h
包装方式Package Steel case
Weight of case 2.5Kgs
Accessories

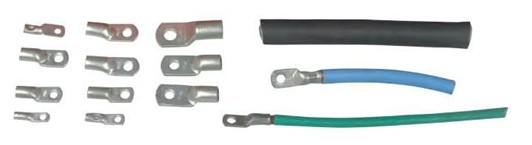

压接模具Crimping Dies. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300，400mm2
电池个数Battery 2pcs
充电器Charger 1pcs
油缸密封圈O-Ring for oil vat 1set
安全阀密封圈O-Ring for safety valve 1set
|
