Specifications:
Maximum input pressure: 70Mpa
Oil volume required: 33cc
Output force: 8T
Size: 245(L)mm
Weight:2.9kg
Remarks: Cutting of piano wire is prohibited.
Cutting capacity
Wire rope 6×7: 18mm
Wire rope 6×12: 24mm
Wire rope 6×19: 24mm
Soft steel bar: 20mm
Reinforcing rod: 24mm
Cu strands:24mm
Al strands:24mm
ACSR:24mm
Guy wire 1×7:20mm
Guy wire 1×19:20mm
CCP cable:N/A

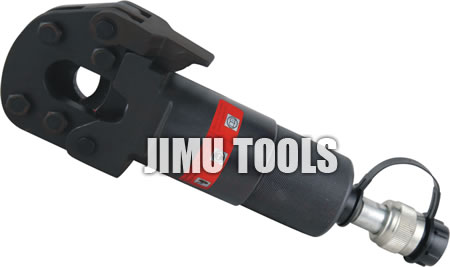

Remote Control Hydraulic Cutter
The CPC-24H hydraulic cutter head features:
1.Fast cutting with remote operation
2.It can be operated by any hydraulic pump with rated oil pressure of 70Mpa(10,000PSI)
3.Equipped with PT3/8" threaded high pressure couples
4.PT-NPT adapters are available on request for NPT3/8" threaded couplers
5.Blades are easily replaceable
6.Flip-top latch for easy insertion of cutting material
7.Cut steel materials as well as cables up to 24mm
|
