Specifications:
Two stage pumping
Relief valve is equipped
Reservoir capacity:120CC
Maximum opening:24mm
Output force:8T
Size:475(L)mm
Weight:4.9kg
Remarks: Cutting of piano wire is prohibited
Cutting capacity
Wire rope 6×7:18mm
Wire rope 6×12:24mm
Wire rope 6×19:24mm
Soft steel bar:20mm
Reinforcing rod:16mm
Cu strands:24mm
Al strands:24mm
ACSR:24mm
Guy wire 1×7:20mm
Guy wire 1×19:20mm
CCP cable:N/A

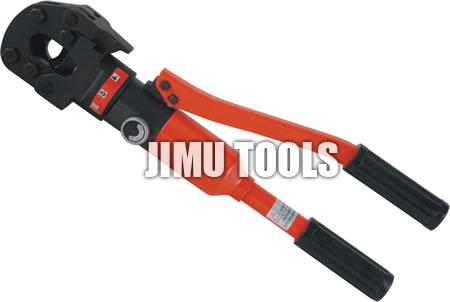

Hydraulic Cutter
Light weight portable hydraulic cutter features:
1.New series (heavy duty, improved design)
2.Two stage pumping for rapid blade advance
3.Guillotine type cutting for less jamming than shear type cutting
4.Blades are easily replaceable
5.180 degree swivel and latch type head allows easy cutting position

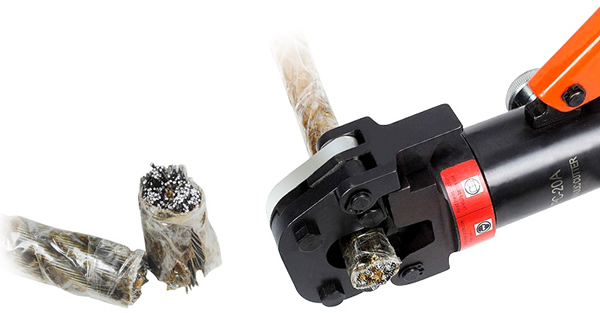

6.Cut steel materials as well as cables up to 24mm
|
