Specifications:
Maximum input pressure: 70Mpa
Output force: 8T
Size: 410(L)mm
Weight:4.5kg
Remarks: Cutting of piano wire is prohibited.
Cutting capacity
Soft steel bar: 22mm
Reinforcing rod: 19mm
Cu strands:54mm
Al strands:54mm
ACSR:54mm
CCP cable:N/A

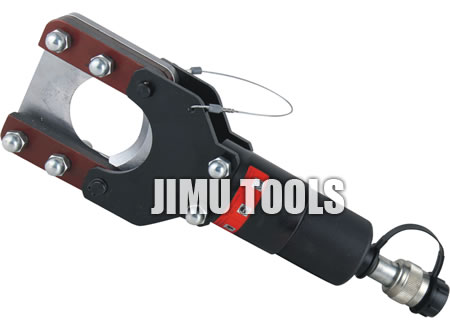

Remote Control Hydraulic Cutters
The CPC-55H hydraulic cutter head features:
1.Fast cutting with remote operation
2.It can be operated by any hydraulic pump with rated oil pressure of 70Mpa(10,000PSI)
3.Equipped with PT3/8" threaded high pressure couples
4.PT-NPT adapters are available on request for NPT3/8" threaded couplers
5.Blades are easily replaceable
6.Lock pin type cutter head
7.Cut steel materials as well as cables up to 55mm
